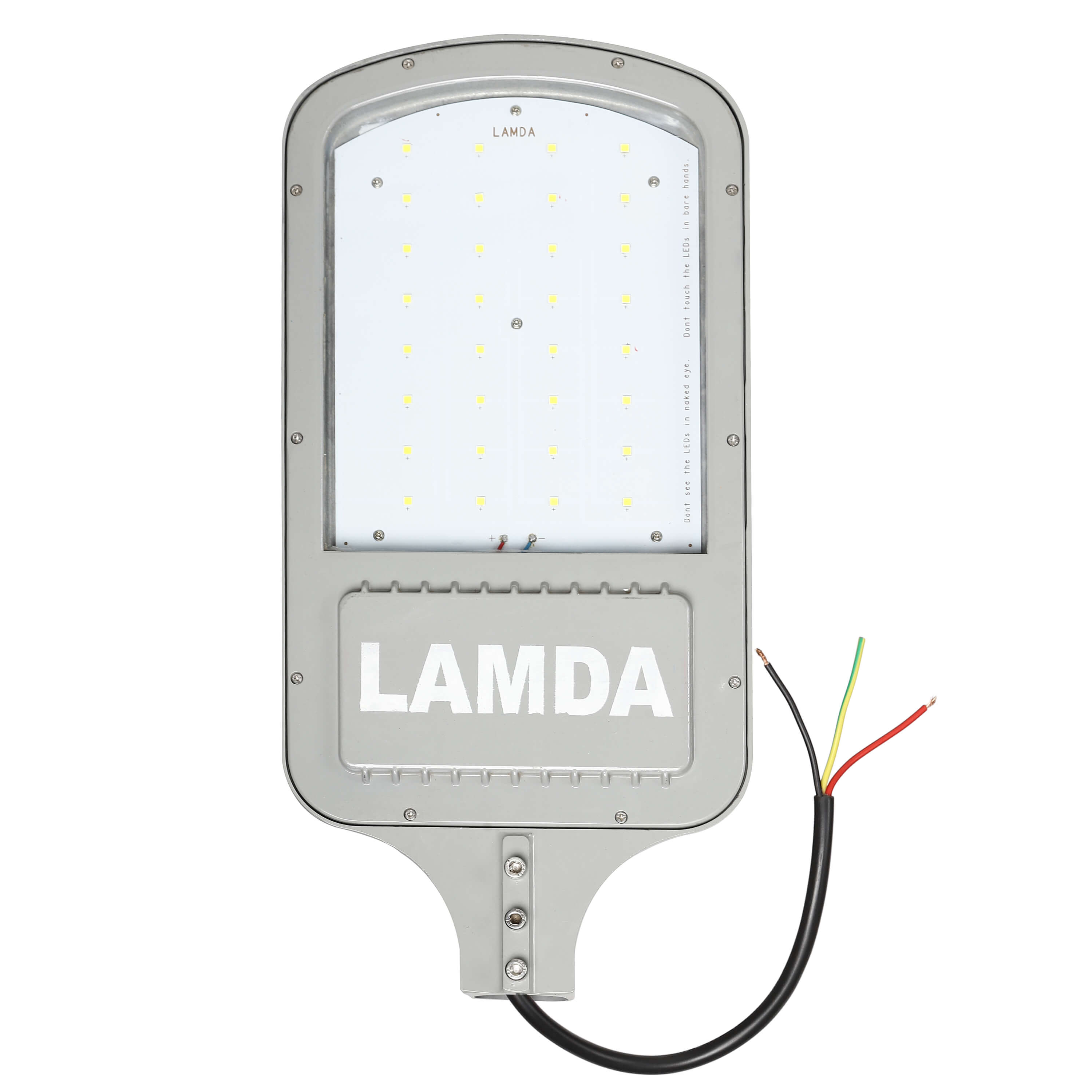

Single piece pressure die-cast aluminium LED street light luminaire suitable for general security, parks & gardens,public areas, housing societies etc.
Fitted with heat resistant toughened glass, high grade silicon rubber & SS toggles.
Product specification
| Housing & Frame | Epoxy grey powder coated single piece pressure die-cast ( PDC ) Alu. Alloy with “cooling fins” for superior heat dissipation. |
| Cover | High Transmittance, Unbreakable Poly carbonate Cover. Fitted with high grade silicon rubber with IP ‐ 65 protection. |
| LED Used | PHILIPS/OSRAM/CREE/SAMSUNG Brand |
| LED Driver | Universal Input, High PF, Low THD, High efficiency Driver |
| Mounting | Suitable for pole mounting with arm OD of 40mm dia (max) with the help of 2 Nos. bolts. |
| IP Classification | IP 65, Dust Proof/Rain Proof. |
Advantage
- Flicker Free, Instant start
- Superior heat management
- Longer Lamp Life ( > 30,000 Hrs. )
- Very low maintenance cost
- Environmental friendly, No Lead, No Mercury
- Minimal UV & heat emission onto lit surface
- Low power consumption as compared to Conventional Street Lights
Technical Specifications
| Parameters | LED street light 150W |
|---|---|
| Input Voltage ( Volts ) | 90 – 265 V |
| Input Frequency (Hz) | 50 / 60 Hz |
| Power Factor | > 0.95 |
| Total Harmonics (THD) | < 20% |
| LED Driver Efficency | > 80% |
| Input Power(in watts – Max.) | 150.0 W |
| Total Lumens (Lm) | 15000 Lms |
| colour Temp. | 6500K |
Applications
- General Security
- Parks & Gradens
- Housing Societies
- Car Parking Areas
- Industrial Areas
